PICkit ? 1 Flash Starter Kit User’s Guide
3.2.1
Select Device
The user must first select the device intended for programming. Select the device by
clicking on the Device drop-down menu, as shown in Figure 3-2. The drop-down menu
lists the available devices that can be programmed by the PICkit 1 Baseline Flash
programming software.
Note:
Baseline (12-bit core) devices do not contain a Device ID. As a result, the
PICkit 1 programming software cannot determine which device is in the
evalution socket of the PICkit 1 Flash Starter Kit. It is important that the user
verify that the target device and the selected device match. Otherwise
unintended results will happen.

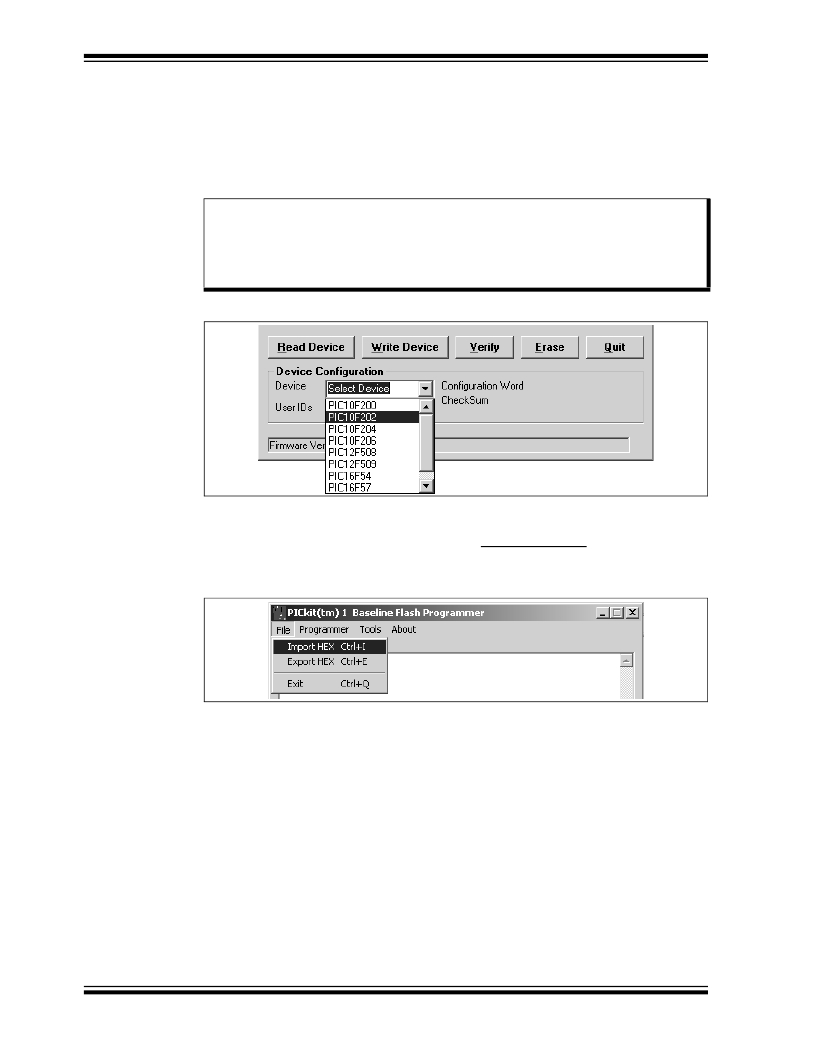

FIGURE 3-2:
SELECT DEVICE
3.2.2
Import HEX File
To import a compiled program (hex file), select File > Import HEX , as shown in
Figure 3-3. Browse for the hex file and click Open .
FIGURE 3-3:
IMPORT HEX FILE
The code is displayed in the Program Memory window.
After the hex file is imported, write the program to the device by clicking the
Write Device button. The existing program will be erased and replaced with the new
one. The status of the program write is displayed in the status bar located at the bottom
of the Interface window.
If the write is successful, the status bar turns green and displays “Write Successful”, as
shown in Figure 3-4.
DS40051D-page 14
? 2004 Microchip Technology Inc.
